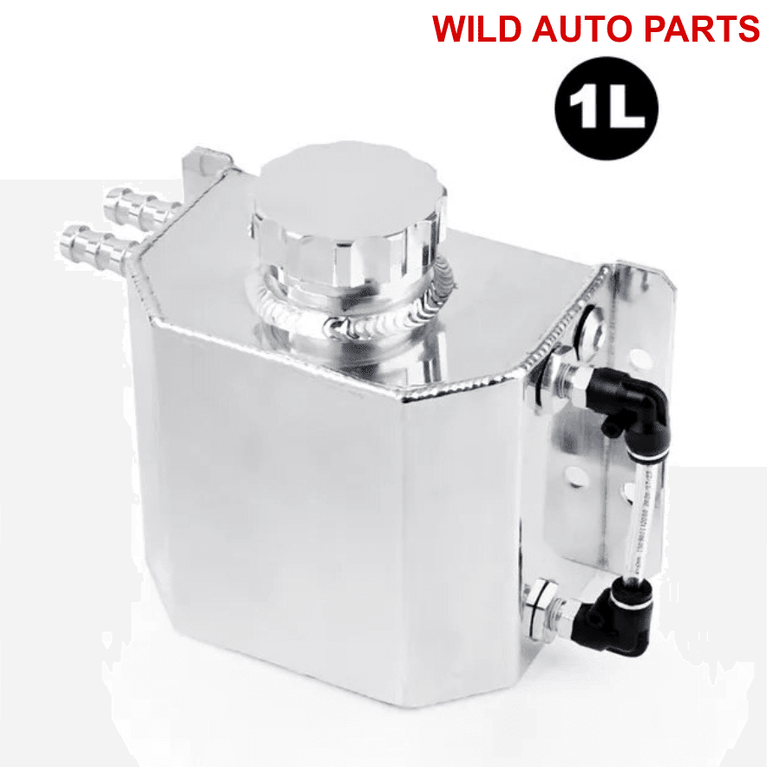

Wild Auto Parts Branded Engine Oil Catch Can

Complete kit with tank cap, easy to install, install this oil trap as far away from the heat source as possible.

There are 4 screw holes on the flange, you can conveniently select the holes to repair the water tank according to the actual installation situation.

Improve the efficiency of the engine, make your ride smoother, liquid level indicator, easy to read liquid level.

There are 6 threaded holes on the tank, and you can freely match the mounting input and output nozzles as well as the level indicator.

Automotive engine oil capture can be designed to collect waste oil, reduce carbon deposits in the cabin, and extend engine life.

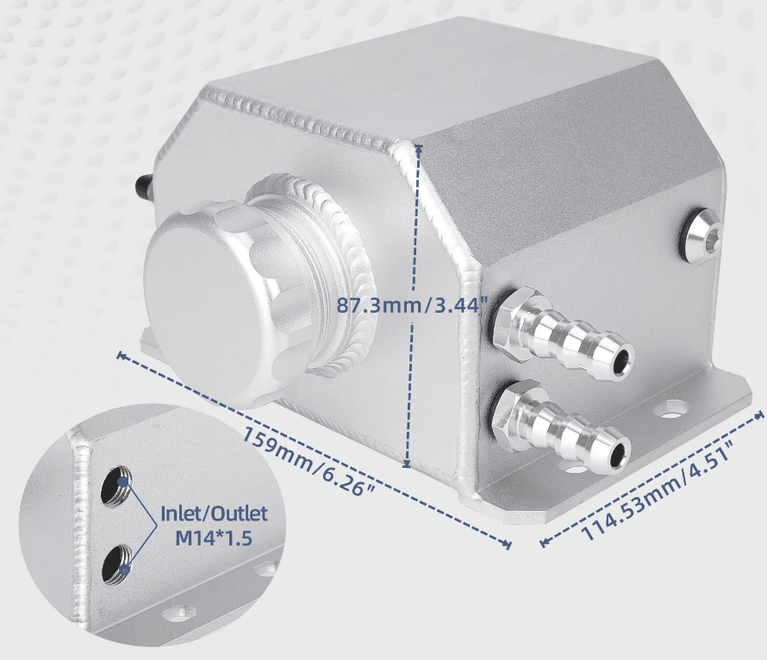

Capacity: 1 L (1000 ml)

Thread size: ORB-6

Inlet/outlet size: 0.4 inches

Width: 6.5" (with flange)

Height: 5.6" (with cap)

Depth: 3.3 inches

Material: Aluminum Alloy Anodized

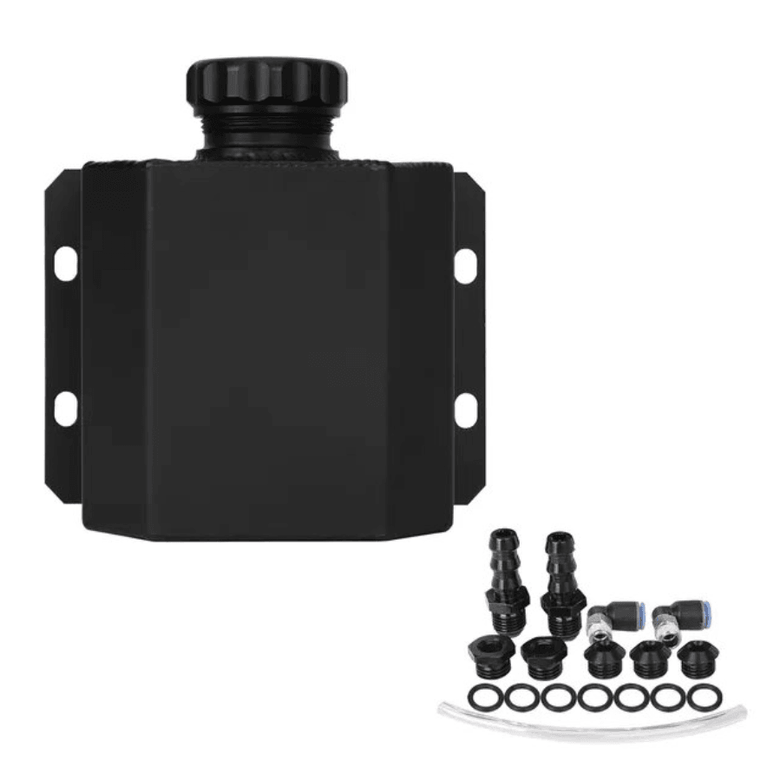

Colour: Black or Silver

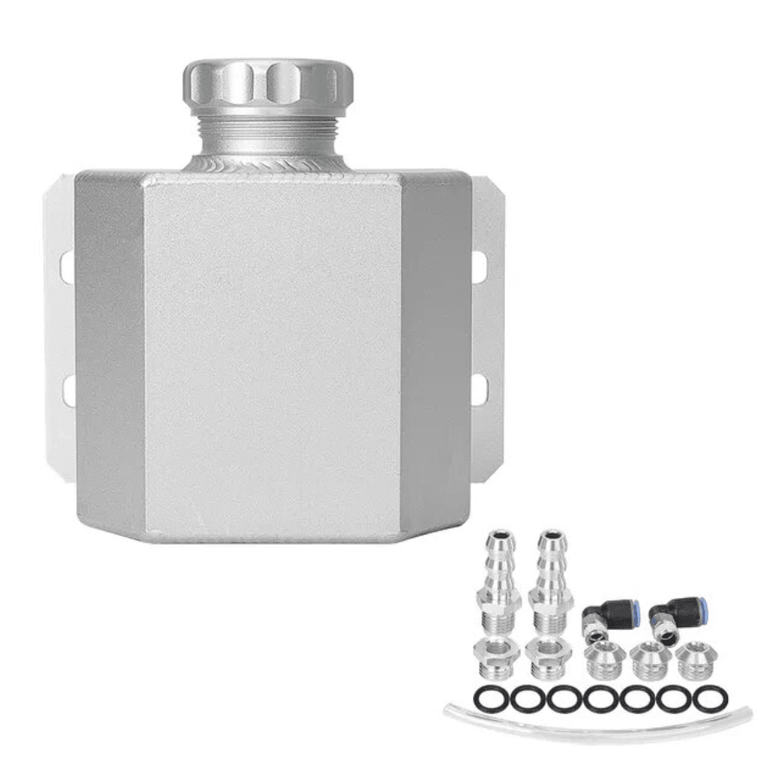

2. Silver Polished Style

Width: 170mm Incl. Flange

Height: 145mm Incl. Cap

Depth : 85mm

Inlet/Outlet Size : 10mm

Capacity : 1000ml ( 1L)

Colour : Polished

Silver Polished Upgrade Advantages:

1. Mirror polishing process, so that it has a mirror effect

2. Containes ultrasonic cleaning functions, reduces the internal precipitation of impurities

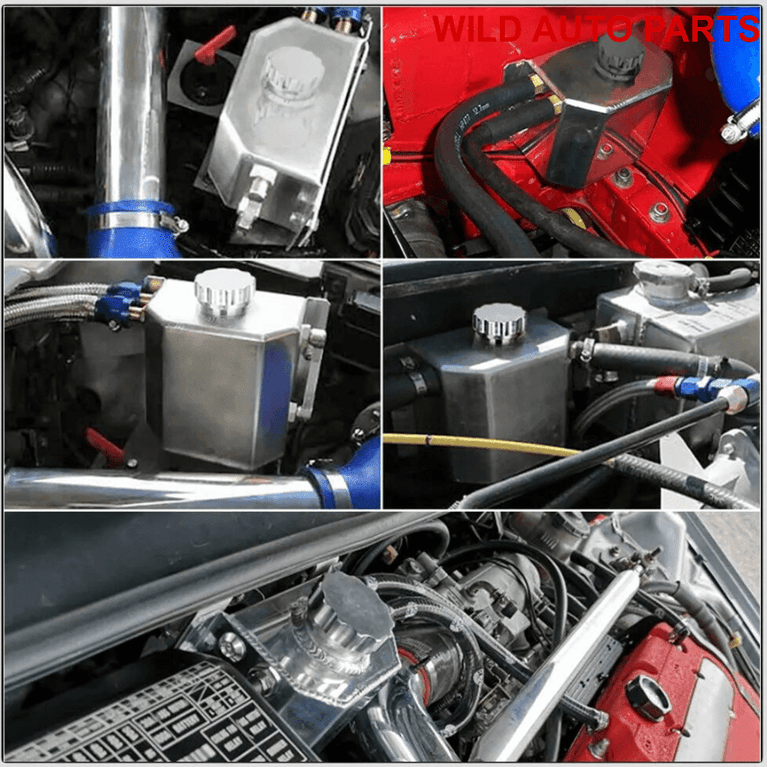

Installation Instructions:

Before installing, be sure to select the installation location.

Since the engine dissipates heat while working, try to install the oil vent far away from the heat source.

To facilitate the cleaning of the oil-water mixture in the oil vent in the future.

When connecting, be sure to fix it with a clamp and try to keep the entire pipeline in a vacuum state.

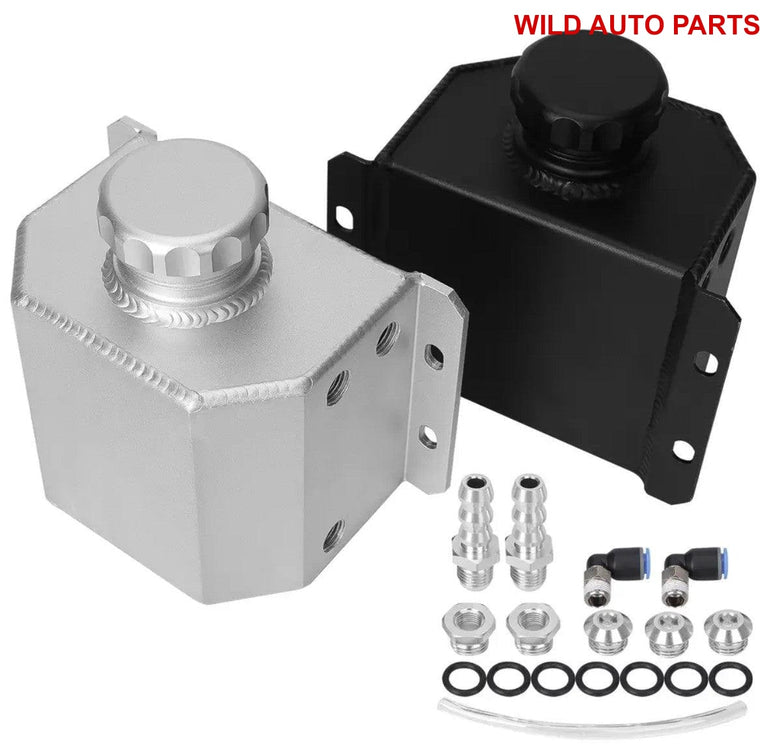

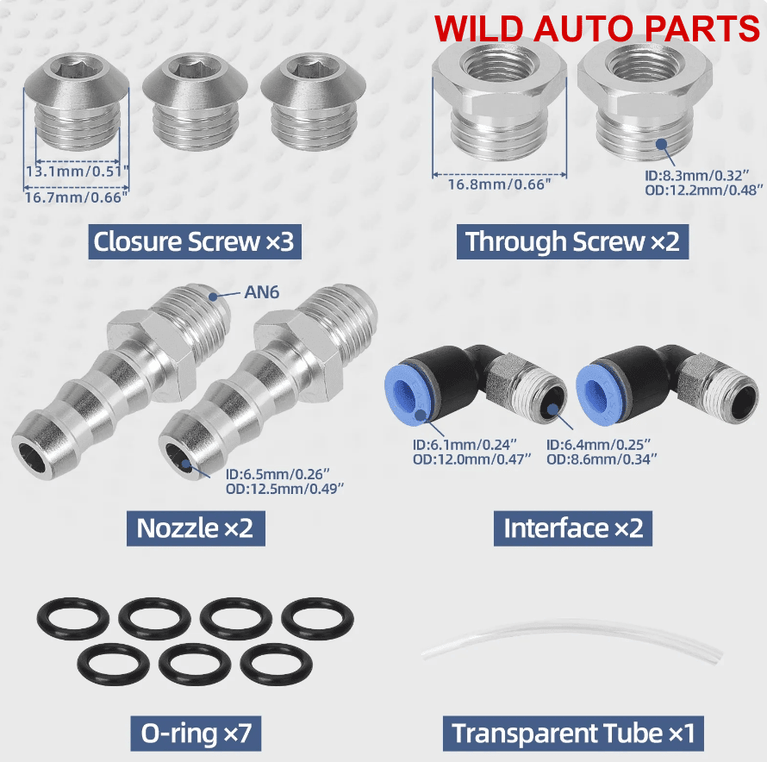

1x Tank with accessories
